Build Your Own Tesla SDU Openinverter Kit
FREE Shipping within the USA
All Kits Include

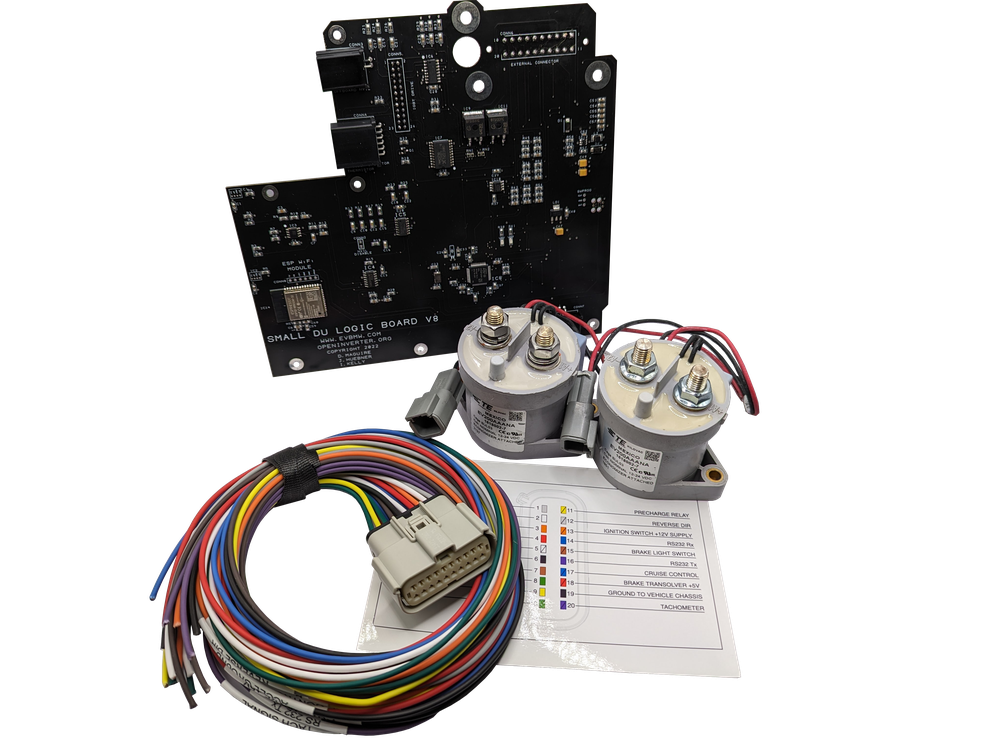

Openinverter Logic Board
Two New Current Sensors
Optional Add-Ons
Fully labeled color-coded pigtail/harness
HV Contactors
Applications
This product is intended for use in non-Tesla vehicles only.
This board unlocks any non-Raven 2012-2020 Tesla Model S/X Front or Rear small drive units.
Logic Board
All components and connectors (except the current sensors) have been fully soldered and tested with the latest firmware and default parameters. Once installed, you can access the inverter parameters via an easy-to-use web interface to tune the motor for your application. SDU boards supplied by Westside EV have been slightly modified so that the plastic MX150 connector fits better on the board and avoids breaking off the little leg protruding from the bottom of the connector.
Openinverter boards also feature onboard ~5kW charging, so you don't need to buy and integrate a separate onboard charger if fast charging is not required!
NOTE: Installation is not for beginners! It requires soldering delicate current sensors and moving fragile plastic parts from the old board to the new board. Watch this comprehensive installation video for guidance.
Current Sensors
Two new Melexis 7.3mV/mT current sensors are included, so you don’t have to worry about removing and reusing the existing sensors without damaging them.
Wiring Harness
Optional fully labeled MX150 wiring harness pigtail made with high-quality 18 AWG silicone wire, color-coded and labeled for the Openinverter logic board pinout. A full-color pinout card is included as well. Custom lengths can be ordered for $15 per additional meter.
Contactors
Optional used/refurbished high-voltage Kilovac EV200AAANA contactors. We recommend three contactors for pre-charge, main, and HV negative connections. These contactors feature an economizer and can handle 500 amps and up to 900vdc. Contactors show signs of use and/or refurbishment but have been tested and confirmed to work well. These units are very expensive new, so you are saving a LOT with these refurbished ones.
High Voltage Relay Voltage (Max) (VDC): 900
High Voltage Relay Coil Voltage Rating (VDC): 9 – 36
High Voltage Relay Coil Resistance (Ω): 3.14
High Voltage Relay Contact Switching Voltage (Max) : 900
High Voltage Relay Contact Current Rating (A): 500
FREE Shipping within the USA
All Kits Include
Openinverter Logic Board
Two New Current Sensors
Optional Add-Ons
Fully labeled color-coded pigtail/harness
HV Contactors
Applications
This product is intended for use in non-Tesla vehicles only.
This board unlocks any non-Raven 2012-2020 Tesla Model S/X Front or Rear small drive units.
Logic Board
All components and connectors (except the current sensors) have been fully soldered and tested with the latest firmware and default parameters. Once installed, you can access the inverter parameters via an easy-to-use web interface to tune the motor for your application. SDU boards supplied by Westside EV have been slightly modified so that the plastic MX150 connector fits better on the board and avoids breaking off the little leg protruding from the bottom of the connector.
Openinverter boards also feature onboard ~5kW charging, so you don't need to buy and integrate a separate onboard charger if fast charging is not required!
NOTE: Installation is not for beginners! It requires soldering delicate current sensors and moving fragile plastic parts from the old board to the new board. Watch this comprehensive installation video for guidance.
Current Sensors
Two new Melexis 7.3mV/mT current sensors are included, so you don’t have to worry about removing and reusing the existing sensors without damaging them.
Wiring Harness
Optional fully labeled MX150 wiring harness pigtail made with high-quality 18 AWG silicone wire, color-coded and labeled for the Openinverter logic board pinout. A full-color pinout card is included as well. Custom lengths can be ordered for $15 per additional meter.
Contactors
Optional used/refurbished high-voltage Kilovac EV200AAANA contactors. We recommend three contactors for pre-charge, main, and HV negative connections. These contactors feature an economizer and can handle 500 amps and up to 900vdc. Contactors show signs of use and/or refurbishment but have been tested and confirmed to work well. These units are very expensive new, so you are saving a LOT with these refurbished ones.
High Voltage Relay Voltage (Max) (VDC): 900
High Voltage Relay Coil Voltage Rating (VDC): 9 – 36
High Voltage Relay Coil Resistance (Ω): 3.14
High Voltage Relay Contact Switching Voltage (Max) : 900
High Voltage Relay Contact Current Rating (A): 500
FREE Shipping within the USA
All Kits Include
Openinverter Logic Board
Two New Current Sensors
Optional Add-Ons
Fully labeled color-coded pigtail/harness
HV Contactors
Applications
This product is intended for use in non-Tesla vehicles only.
This board unlocks any non-Raven 2012-2020 Tesla Model S/X Front or Rear small drive units.
Logic Board
All components and connectors (except the current sensors) have been fully soldered and tested with the latest firmware and default parameters. Once installed, you can access the inverter parameters via an easy-to-use web interface to tune the motor for your application. SDU boards supplied by Westside EV have been slightly modified so that the plastic MX150 connector fits better on the board and avoids breaking off the little leg protruding from the bottom of the connector.
Openinverter boards also feature onboard ~5kW charging, so you don't need to buy and integrate a separate onboard charger if fast charging is not required!
NOTE: Installation is not for beginners! It requires soldering delicate current sensors and moving fragile plastic parts from the old board to the new board. Watch this comprehensive installation video for guidance.
Current Sensors
Two new Melexis 7.3mV/mT current sensors are included, so you don’t have to worry about removing and reusing the existing sensors without damaging them.
Wiring Harness
Optional fully labeled MX150 wiring harness pigtail made with high-quality 18 AWG silicone wire, color-coded and labeled for the Openinverter logic board pinout. A full-color pinout card is included as well. Custom lengths can be ordered for $15 per additional meter.
Contactors
Optional used/refurbished high-voltage Kilovac EV200AAANA contactors. We recommend three contactors for pre-charge, main, and HV negative connections. These contactors feature an economizer and can handle 500 amps and up to 900vdc. Contactors show signs of use and/or refurbishment but have been tested and confirmed to work well. These units are very expensive new, so you are saving a LOT with these refurbished ones.
High Voltage Relay Voltage (Max) (VDC): 900
High Voltage Relay Coil Voltage Rating (VDC): 9 – 36
High Voltage Relay Coil Resistance (Ω): 3.14
High Voltage Relay Contact Switching Voltage (Max) : 900
High Voltage Relay Contact Current Rating (A): 500
50% of all new logic board profits go directly to the original developers. By purchasing this bundle, you're not just getting a great deal, but you're also contributing to the ongoing development and innovation of the Openinverter community. Thank you for helping support the creators who make it all possible! 🚀
All boards are verified to be working before shipping. Be sure to read the Openinverter wiki to get up-to-speed as much as possible first, but feel free to contact us for installation guidance or troubleshooting if needed. If a board is determined to have any defects or damage during shipping, we will replace it at no cost. You can also utilize the Openinverter community forums or purchase support hours via the Openinverter webshop for personalized troubleshooting specific to your project.
